Cuplock Systems scaffolding

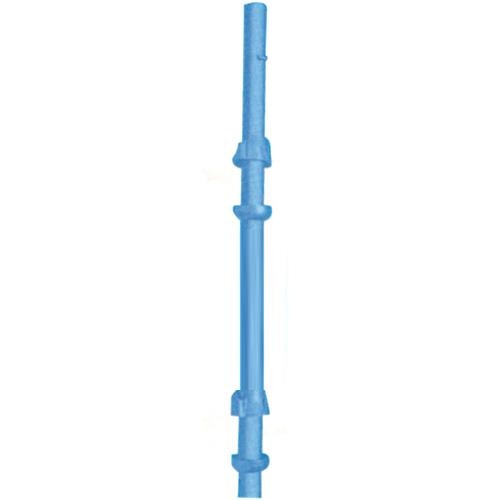

Vertical Standard(Open End)
Manufactured from 48.3mm diameter x 3.2mm thick high-grade steel tubes conforming to EN 10219 standards, the Standards (Verticals) feature two cups — a fixed bottom cup, welded at pre-determined intervals of 500mm, and a sliding top cup. The forged blade ends of the Ledgers (Horizontals) fit securely into the bottom cups, after which the top cup is lowered and rotated to lock the components in place. A light hammer strike ensures a rigid, positive, and secure connection, providing excellent stability and strength to the scaffolding structure.

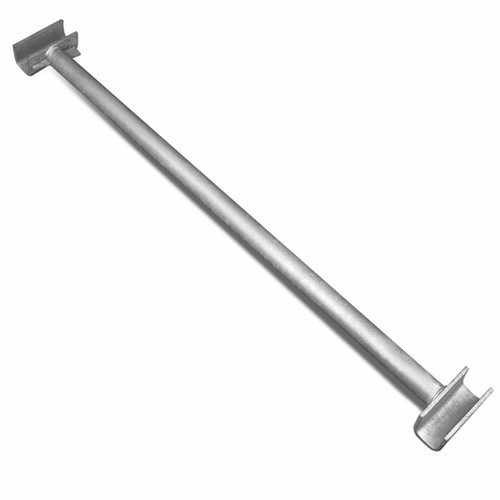

Ledger (Horizontal)
Ledgers (Horizontals) are manufactured from 48.3mm diameter high-grade steel tubes conforming to EN 10219 standards. Each ledger is fitted with forged steel blade ends designed for maximum strength and durability. These blades are precisely engineered to fit securely into the bottom cups of the Standards (Verticals) within the Cuplock Scaffolding System. Once positioned, the components are locked firmly in place using the corresponding top cup, ensuring a tight and stable connection. This unique locking mechanism allows for quick assembly.
Intermediate Transom (Horizontal)
Transoms are manufactured from 48.3mm diameter high-grade steel tubes in compliance with EN 10219 standards. Designed to rest securely on the ledgers at right angles, they help reduce the span and provide additional support for scaffold boards, ensuring enhanced strength and stability. Each transom features an integral locking device at one end, preventing any unwanted movement along the ledgers during use. This precise engineering ensures a firm, safe, and stable working platform, making the transoms an essential component of the Cuplock.
Beam Bracket
Beam Brackets are manufactured from 48.3mm diameter high-grade steel tubes conforming to EN 10219 standards. They are designed to provide reliable support for beam formwork and also to assist in supporting standards, with provisions for accommodating jacks or fork heads. Each beam bracket offers a safe load-carrying capacity of up to 1500 kg, ensuring strong and stable performance on site. By efficiently distributing the load throughout the surrounding Cuplock Scaffolding System, the beam bracket minimizes excessive stress on individual components, enhancing the overall strength, durability, and safety of the structure during heavy-duty construction operations.
Tubular Hop-up Brackets
Hop-Up Brackets are manufactured from 48.3mm diameter high-grade steel tubes conforming to EN 10219 standards. They are designed to extend the width of the working platform, used in combination with transoms, intermediate transoms, or inside-board transoms. Each bracket features a cup joint at the outer end, allowing the attachment of an inside ledger that connects multiple hop-up brackets together while providing secure support for transoms or intermediate transoms. This design ensures a stable, wider, and safer working platform, making hop-up brackets an essential component in flexible and efficient Cuplock Scaffolding Systems.
Cantilever Frame
This frame is designed with ledger blades on one end, allowing it to be securely connected to the Cuplock Standards. On the opposite end, it includes three adjustable jack positions located at 1.2m, 1.25m, and 1.3m from the centerline of the standard, offering flexibility for various height and alignment requirements. The robust design ensures easy installation, accurate positioning, and enhanced stability during construction. Engineered from high-quality materials, the frame provides strong support for scaffolding and formwork applications, ensuring safety and durability while maintaining precise load distribution across the Cuplock Scaffolding System for efficient on-site performance.
Cantilever Beam Frame
Available finishes include Painted and Hot-Dip Galvanized options, providing superior protection, durability, and a long-lasting surface finish.
Top Cup
The captive mobile cups are crafted from drop-forged iron, ensuring exceptional strength and durability for rough site handling conditions.
Bottom Cup
Bottom cups are manufactured from high-quality pressed steel and securely welded onto the vertical standards for maximum strength and stability.
Heavy Duty Male Type Caster Wheel
Heavy-Duty Male Type Caster Wheels are designed for mobile scaffolding systems such as Cuplock, Kwikstage, and Ring Lock. Each wheel has a diameter of 8 inches and can support loads up to 1200 kg (12 kN). Equipped with double stopper locks, these caster wheels ensure maximum safety and stability during movement or stationary use. They are available in two durable options — Rubber Tyred and Nylon Tyred — providing excellent performance, smooth mobility, and long-lasting reliability for a wide range of scaffolding applications.
